GJX-6W VIBRATION CALIBRATION SYSTEM

Product Introduction

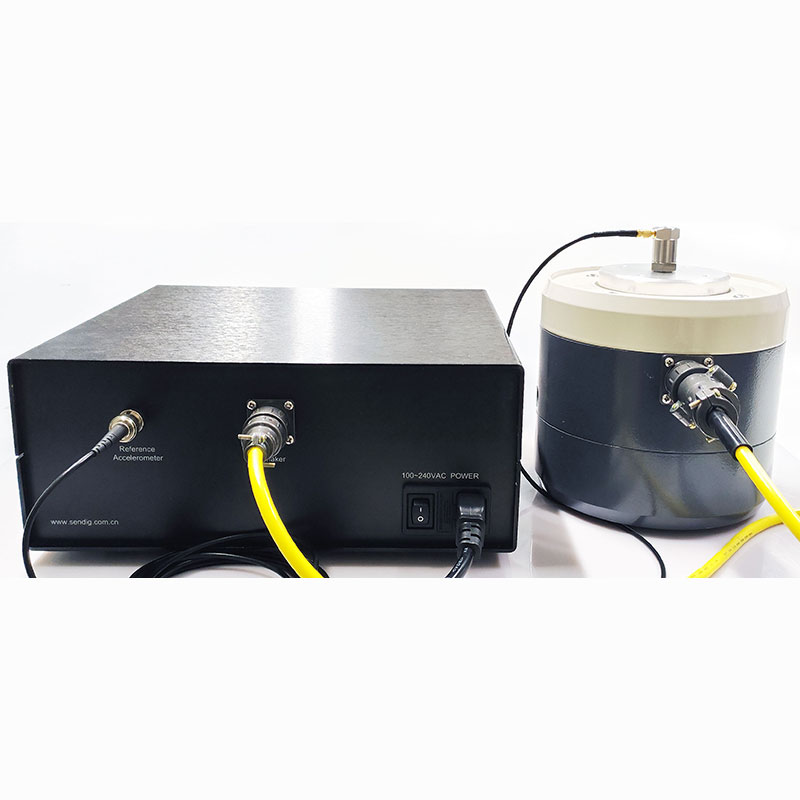

GJX-6W VIBRATION CALIBRATION SYSTEM

Laboratory-Grade-System, Superior Performance, Easy-To-Use, IEPE/Charge Conditioners

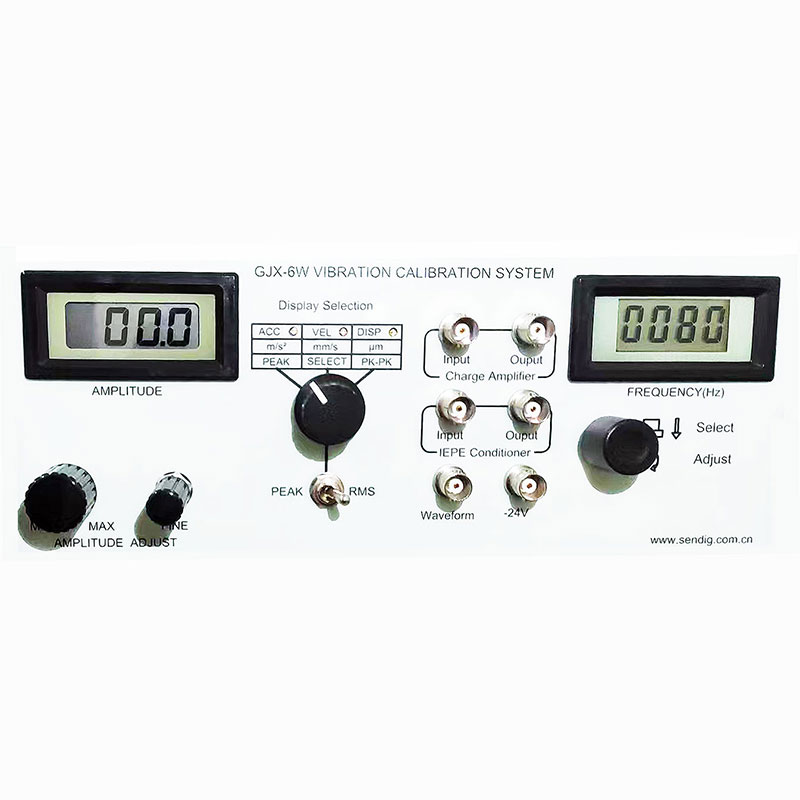

This device can be used to calibrate vibration accelerometer, velocity and proximity transducer and vibration measuring instrument. Standard sine signal vibration at any frequency from 1Hz to 10 kHz can be defined. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Velocity value display Peak/RMS selectable. Combines sine signal generator, power amplifier, standard transducer, vibration meter, shaker, IEPE and Charge Conditioners in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.

Specifications

Frequency: from 1 to 10kHz

Vibration amplitude display accuracy:

Acceleration (@3-10m/s² pk) 10Hz to 1280Hz + 0.3dB + 1digit, 1280 Hz to 9 kHz + 3dB +1digit
8Hz to 10Hz + 0.5dB +1digit, Low frequencies below 8 Hz need to be measured using S908L
Velocity (@20mm/sec rms) 10Hz to 320Hz +0.3dB +1digit
Displacement (@50μm pk-pk)10Hz to 160Hz +0.3dB +1digit
Lateral vibration ratio: <8% from 10Hz to 1280Hz, <15% from 5Hz to 5000Hz
Acceleration Waveform Distortion: <5% from 10Hz to 10 kHz

Proximity probe linearity calibration kits for 5mm, 8mm and 11mm probes, Range: 0~5.0mm

IEPE Conditioner: Excitation 24V 2.4mA; Voltage Gain 1, 5Hz to 10 kHz

Charge Conditioner: Gain: 10mV/pC, 5Hz to 10 kHz

Power for proximity transducer: -24Vdc

Display: 4 digits display for vibration amplitude and frequency

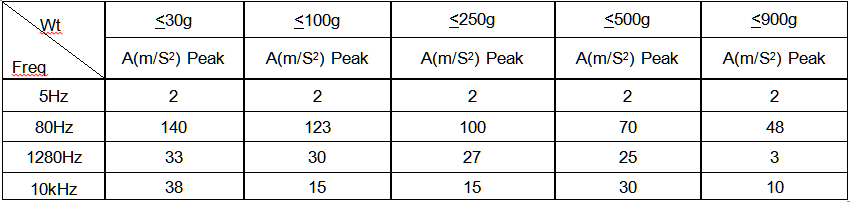

Maximum vibration amplitude & transducer weight
