Rotation speed

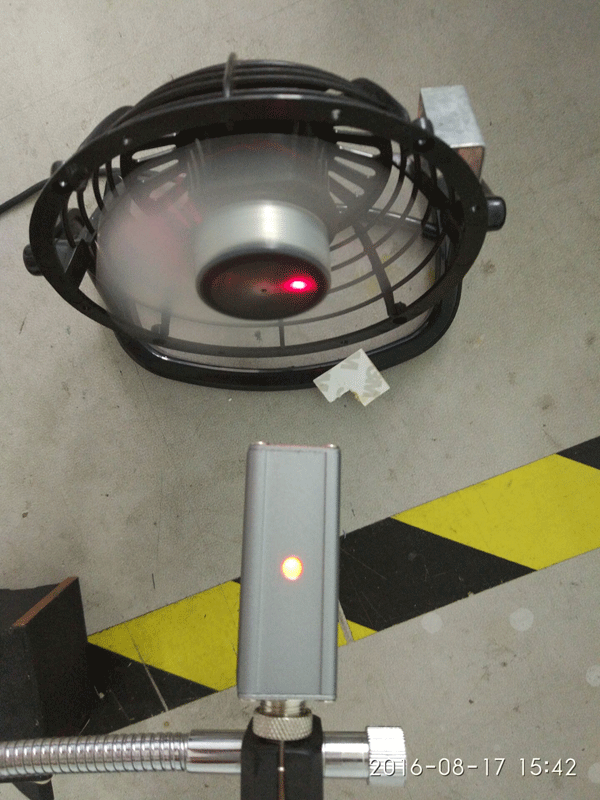

Capable of sensing reflecting light signal from mark on rotating shaft to supply instrument with trigger or rotating speed signal.


Specifications:

    • Output signal: TTL impulse generated when switch from black to white

    • Indicator: LED, flash when there is an impulse

    • Operating Temperature Range: 0~50 Celsius degree

    • RPM range: 1 ~ 60000 r/minute

    • Mounting method: M18 × 1

    • Laser distance to the shaft: 1~2000 mm

    • Connector type: Sendig 301(plug supplied together)

    • Power source: 4.5~5.5Vdc, 28mA

    • Dimension (mm): 95(Length) × 36(width) × 27(High)

    • Weight: 50g
