Product Introduction

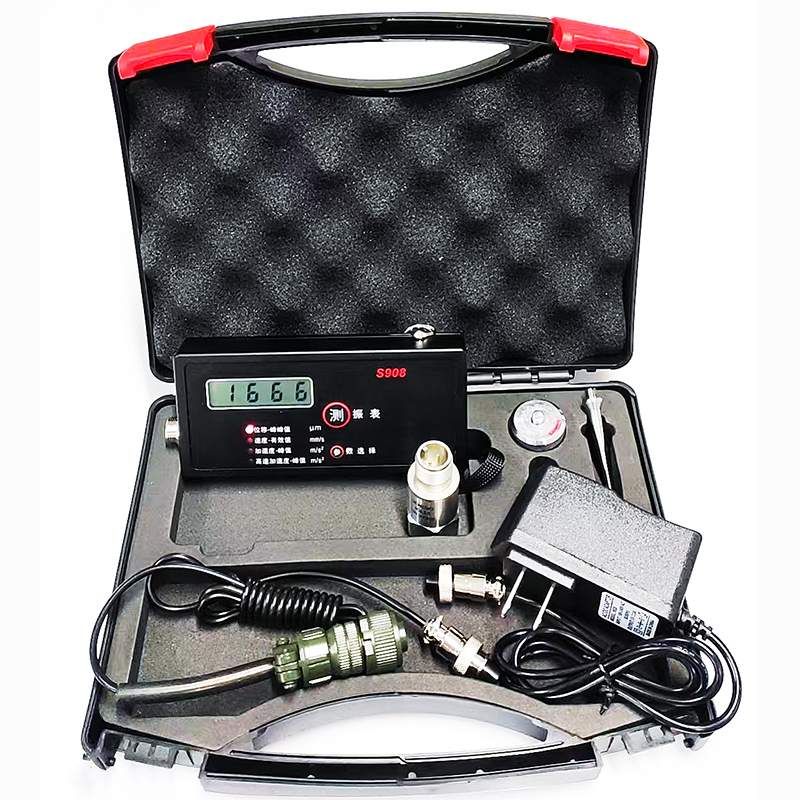

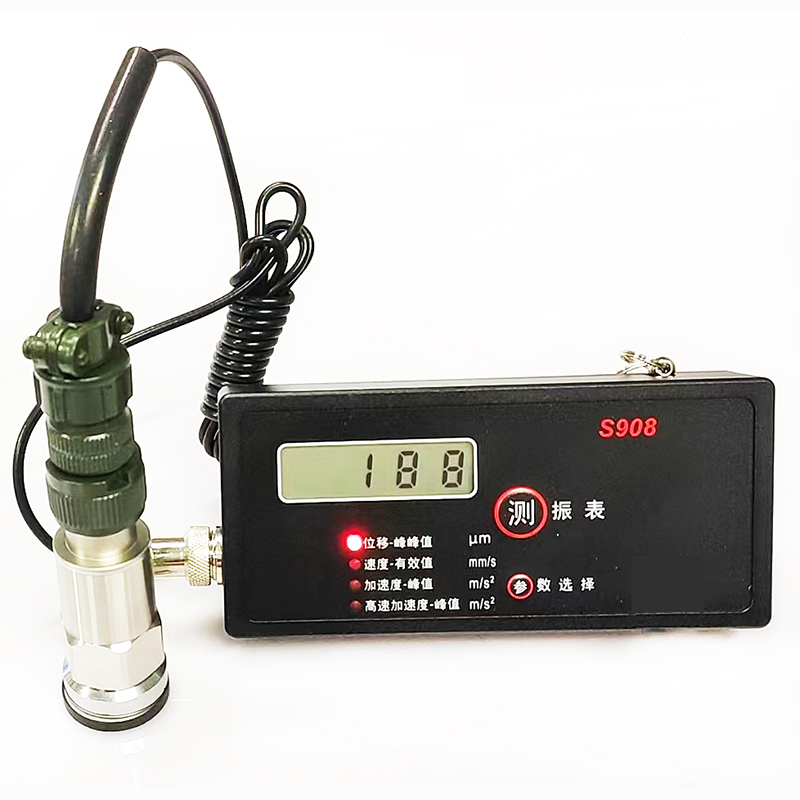

Rechargeable Vibration Meter S908

Features:

Measuring vibration velocity, displacement and acceleration.

Small size, transducer included, battery powered, no other component required.

Optional for inner or external Accelerometer.

One button control both power and measurement. Very easy for use.

3 1/2 LCD digital display, sampling per second.

Holding function.

Automatic power off.

Suitable for monitoring machinery vibration caused by out-of-balance, misalignment, gear damage, bearing faults and etc.

Specifications:

Amplitude Ranges:

Displacement   1—1999µm (or 200 mil) peak-peak

Velocity       0.1—199.9mm/s (or 20 in/s) true RMS

Acceleration  0.1—199.9m/s² (or 20 g) Peak

Overall accuracy: +5%

Temperature range: 0 - 40⁰C

Frequency response:

Displacement   10-500Hz

Velocity            10-1000Hz

Acceleration   10-10000Hz (Depending on external   accelerometer model)

Lithium battery: 6F22 9V, up to 9 hours continuous working time per charge.

Pickup: Accelerometer with handheld probe and /or magnetic base

Dimensions: 13×6×2.3 cm; Weight: 200 g
Two ways to measure：


If you need this accessory, please declare in order.
